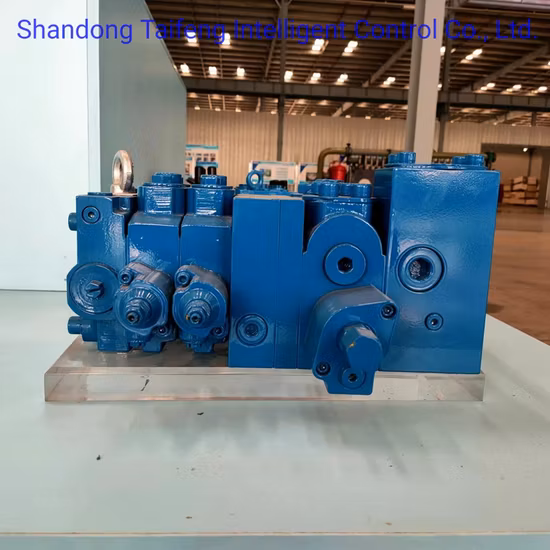

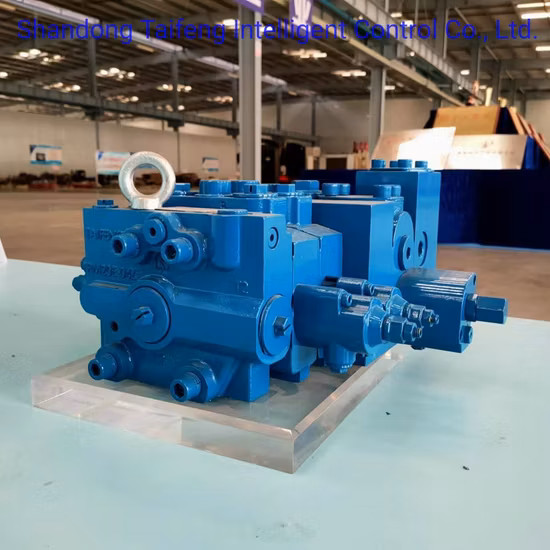

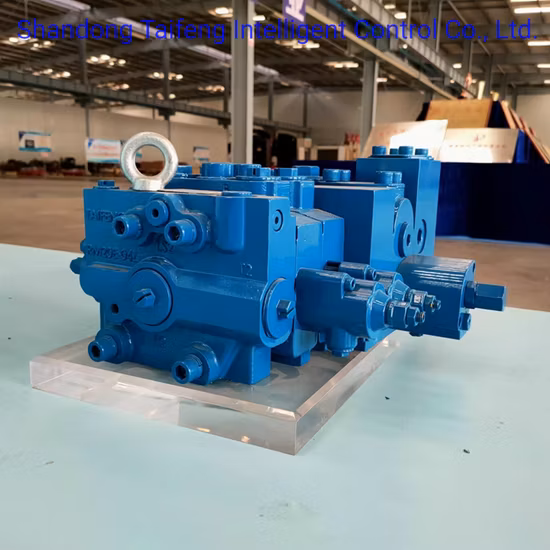

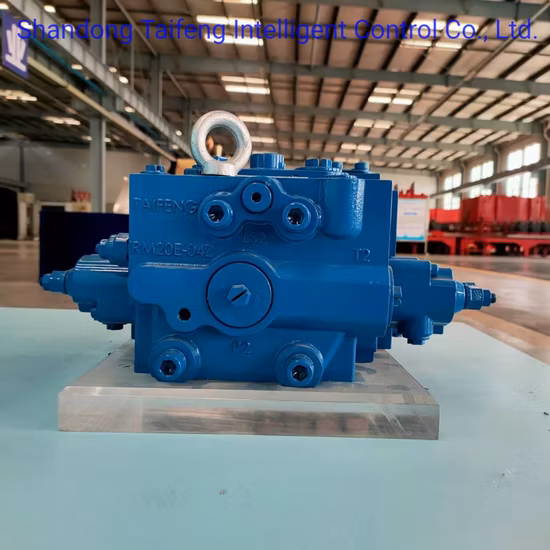

420 L/Min High Performance Sectional Hydraulic Directional Control Valve with Pilot Control for Crane
Overview Product Description TRM25 Series flow sharing mobile control valve Size: 22 Maximum pressure(bar): - on the pum
Send your inquiryDESCRIPTION
OverviewBasic Info.
Model NO. | TRM25 |
Material | Qt450 |
Type | Pilot Control |
Maximum Pressure | 420bar |
Working Sections | Customized |
Size | 22 |
Rated Flow | 420 L/Min |
Application | Crane |
Control Form | Pilot Control |
Transport Package | Customized Plywood Boxes |
Specification | TRM25 |
Trademark | Taifeng |
Origin | China |
HS Code | 8481802990 |
Production Capacity | 4800 |
Product Description
Product DescriptionTRM25 Series flow sharing mobile control valve
Size: 22
Maximum pressure(bar):
- on the pump side 380 bar
- on the actuator side 420 bar
Rated flow (L/min): 400 (inlet plate)
Fields of application
·Crane, rotary drilling machinery and other construction machine
Ordering code
TRM25 - B X E24 - 04 - XX - 01
1 2 3 4 5 6 7
1.Product series TRM25(size 22), maximum flow: inlet port 420 l/min, working port 400 l/min
2.Pump type:
- load sensitive variable displacement pump, D. fixed displacement pump, constant power pump, constant pressure pump, electric proportional pump
3.Control form:
X. pilot control
S. manual operated
H. pilot and manual combined control
4.Electric control type
E24. electric proportional control 24VDC
E12. electric proportional control 12VDC
G24. electric switch control 24VDC
G12. electric switch control 12VDC
Without electric control type, omitted
5.Number of directional valve: for example, 04 stands for 4 plates
6. User identification
7. Design series number
Product series | TRM25 | |
Combination | 3-fold mono block and one fold single plate combination | |
Size | 22 | |
Maximum flow | Port P: 420 l/min Port A/B: 400 l/min (J function), 350 l/min (E function) | |
Maximum pressure | Port P: 380 bar | |
Port A/B: 420 bar | ||
Port T: 30 bar | ||
Pilot pressure | ≤35bar | |
Temperature range | -20ºC to +90ºC | |
Working medium | Mineral oils (HL, HLP) according to DIN51 524 | |
Viscosity range | 2.8 to 380mm²/s | |
Admissible degree of contamination | Maximum admissible degree of contamination: class 9 NAS1638 | |
Weight kg | 3-fold mono block: 64 | |
Single fold directional valve block: 19.5 | ||
Front and back cover: 3.7 | ||
Double pumps confluence valve block: 20 | ||
Port | P | SAE 1 1/4 in 6000PSI |
T, K | SAE 1 1/4 in 3000PSI | |
A, B | SAE 1 in 6000PSI | |
a,b,LS,MP,MLS | G1/4 |
On-off pilot valve | Proportional pilot valve | |||
Voltage | 12VDC | 24VDC | 12VDC | 24VDC |
Electric resistance (below 20ºC) | 8.15Ω±5% | 32.5Ω±5% | 4.72Ω±5% | 20.8Ω±5% |
Control current | 1500mA | 750mA | 0~1500mA | 0~750mA |
Plug | Deutsch DT04-2P | |||
Protection class | IP69k |

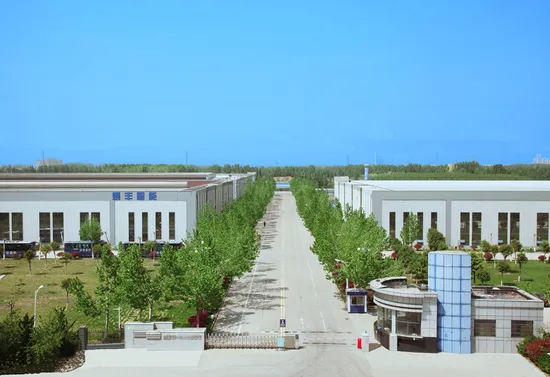

Shandong Taifeng Intelligent Control Co., LTD., founded in 2000, covers an area of 300 mu (200,000 square meters) and has 480 employees. It is a key enterprise in China's liquid gas tightness industry, a state-level high-tech enterprise, a Chinese Machinery Industry management Demonstration enterprise, the "National Intellectual Property Advantage Enterprise" of the State Intellectual Property Office in 2017, and the main drafting unit of the National Standard of two-way Cartridge Valve issued by the State Liquid Standard Committee.
The main products of Shandong Taifeng Intelligent Control Co., Ltd.: cartridge valves, hydraulic manifolds, sectional control valves, prefill valves, axial piston pump,etc.
Q1:Can you provide a sample before a big order?
A:Yes, we can.
Q2:How about your quality?
A:Taifeng products are very popular with many OEM customers in China, such as CFHI,CHINA ERZHONO, ZS, and TZ.
Q3:How long has your company run in Hydraulic Fields?
A:Over 22 years
Q4:Which payment terms do you accept?
A:L/C, T/T, DDU.
Q5: What is your delivery time?
A:It depends on whether there are stocks. If there're stocks, we can ship it within one week. It will take about 30days for new production.
Q6:What's the warranty of your product?
A:One Year after receipt.
Q7: Is your company accept customization?
A: Yes, we accept customized products.
